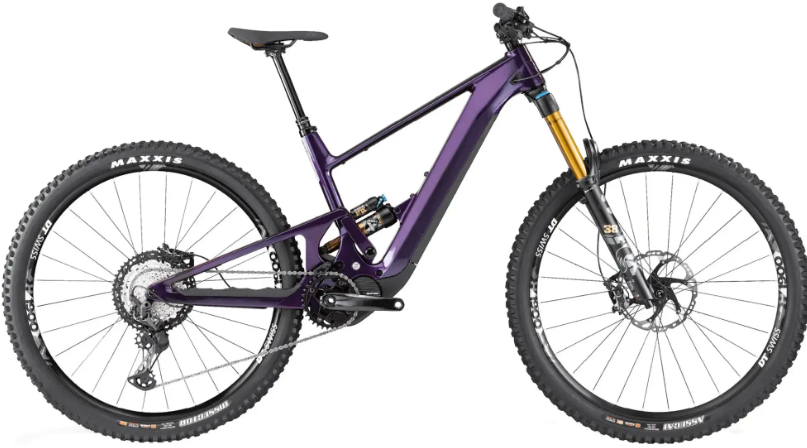

SCOR 4060 Z LTC XT

Frame
SCOR 4060 Z Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Travel | Fully Guided Internal Cable Routing | Boost 148 | SRAM UDH

Fork
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Front Suspension
Fox 38 Factory GRIP2 | 170mm Travel | 44mm Rake

Rear Suspension
Fox Float X Factory | 210 x 55mm

Drive Unit
SHIMANO Steps EP8 DU-EP800

Battery Pack
Darfon 36V | SHIMANO Steps service included | 720 Wh

Display
SHIMANO Steps EP8 Wireless Cycle Computer SC-EM800

Drive Unit Control
SHIMANO Steps EP8 Left Switch Unit SW-EM800-L

Charger
Darfon Smart Plus 100-240V | 4A | EU

Stem
Burgtec Enduro MK3 | 3D Forged and fully CNC machined | 31.6mm Bar Bore | 35mm Length | 0° Angle

Handlebar
SCOR Carbon Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 7.5° Backsweep

Grips
Burgtec Bartender Pro

Seatpost
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm Travel | Triggy Alpha lever

Saddle
Fizik Terra Alpaca

Crankset
SHIMANO Deore XT (FC-M8150) | 165mm Length

Chainrings
34T

Cassette
SHIMANO Deore XT (CS-M8100-12)

Cassette Size
10-51T

Chain
SHIMANO CN-M8100

Rear Derailleur
SHIMANO Deore XT (RD-M8100)

Shifters
SHIMANO Deore XT (SL-M8100-R)

Gears
1 x 12

Brake Levers / Calipers
SHIMANO Deore XT | BL-M8100 Levers | BR-M8120 Calipers

Rotors
SHIMANO SM-RT86

Rotor Size (F/R)
203mm

Rims
DT Swiss H 1900 SPLINE | 30mm Internal Width | Tubeless ready

Hubs (F/R)
DT Swiss 370 | Ratchet LN Freehub | Straightpull Spoke Interface | Boost spacing

Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)

Tubeless Information
Tubeless Ready Rims | Tubetype Tires
